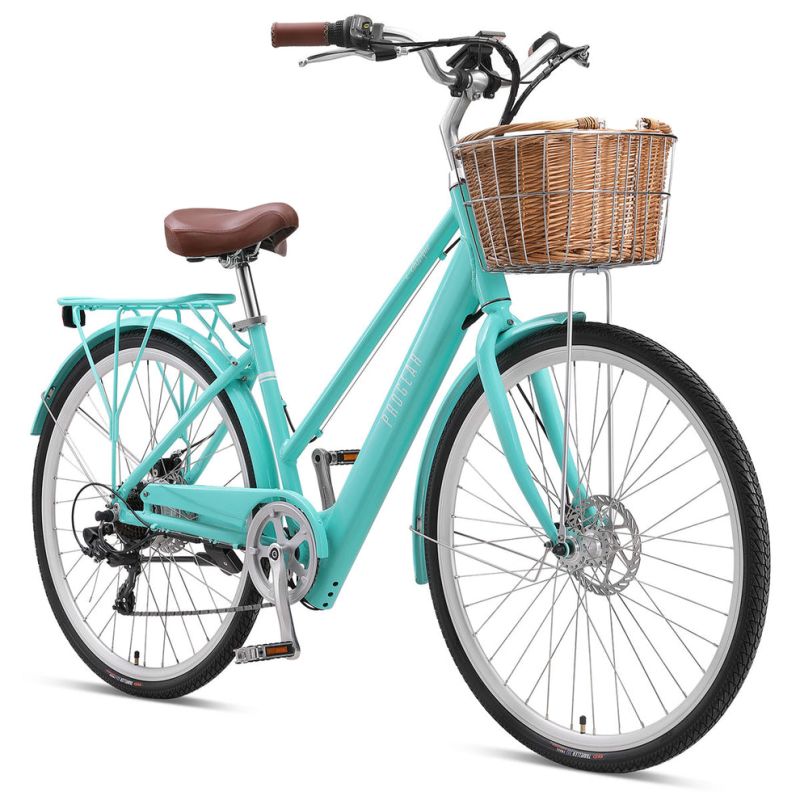

A. 7-Speed Shimano Shifter
B. Quick Release Seat Clamp
C. Colour Matching Rear Rack
D. 7 Speed Shimano Tourney
E. Double Wall rims
F. Step-through Frame
G. EverDrive® 36v Integrated Battery
H. Mechanical Disc Brakes
Specification
Technical Specifications
Frame : 700C x 17" Alloy
Fork : 700C Rigid Steel Fork
Handlebar : Alloy Width:595MM,H:66 44°
Front Basket : Included
Stem : Alloy ?25.4* 100mm, +-30°
Grip : L=130MM R=92M
Crankset : 170m Crank, 42t Chainwheel
BB sets : BB68*126mm
Pedal : Alloy 9/16"
Chain : 1/2*3/32”x118L
Freewheel : Shimano Tourney MF-TZ500-7,7-SPEED, 14-16-18-20-22-24-34T
Derailleur R : Shimano Tourney TY300D 7/6SP
Shiter : Shimano Tourney SL-RS35-7R, 7-SPEED REVO SHIFTER
Brake : Mechanical disc brake, Rotor=160mm
Hub F. : 700C 3/8"*13G*36H*100*108, W/QR,115mm
Rims : 700C*1.5(622)*13G*36H,H=25,double wall
Spokes : 280mm W/brass nipple
Tyre : 700C*38
Seat Post : ?27.2*350mm*2.55T
Seat Clamp : ?31.8 Quick Release
Kickstand : Steel Kickstand
Electrical Components
Motor : EverDrive® Electric Motor 250W 25KM/H - Complies to EN15194
Torque Sensor : dual hall Cable length:130MM
Display : EverDrive® (M5) 36V 0-5 level, Max Speed 25kph
Battery : EverDrive® 36V 8.7AH with Samsung battery cells
Controller : 700C 36VAP 12A
Charger : 42V 2A DC2.1 charger port AS
Electric Bike Battery Information
The travel distance after a full charge on this e-Bike can vary from 30km to 70km.
There are several factors that will affect how long the battery will last after a full charge.
Factors include:
Level of pedal assistance – higher level of assistance will use more battery charge
Weight of Rider & Luggage – more weight may require more power from the battery
Terrain & Weather Conditions – Terrain & wind may cause drag, and will require more power to maintain speed.
Tyre Conditions – Incorrect tyre pressure may create more rolling resistance
Traffic/Route Conditions – Stop/Start cycling may use more power to accelerate up to appropriate travelling speeds.
